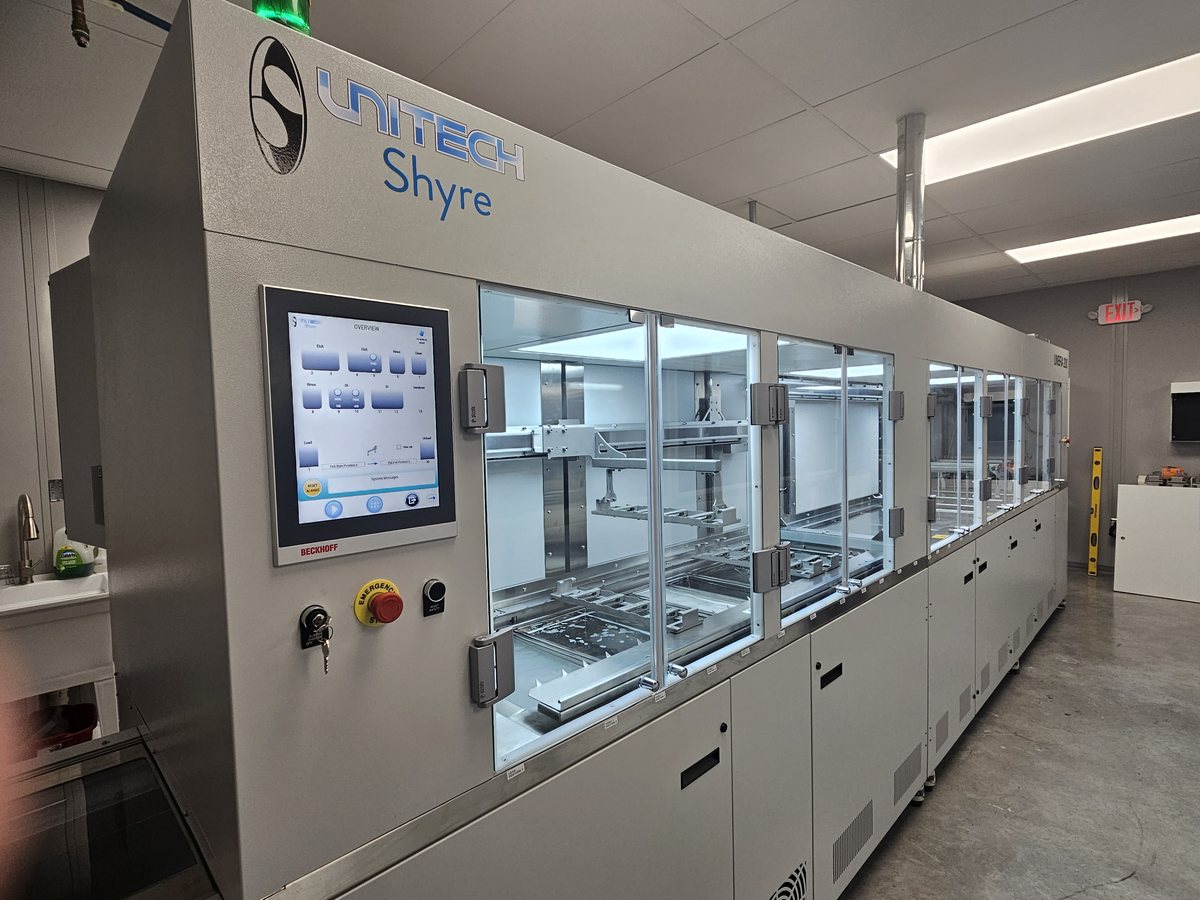

HC200 Lens Dip Coating System

High-volume automatic dip hardcoating for ophthalmic lens production, cleaning and coating more than 200 lenses per hour within a single clean-air enclosure.

The HC200 is the largest standard system in the Unitech Shyre dip hardcoating range, engineered for continuous, high-throughput ophthalmic production. It integrates multi-stage ultrasonic cleaning and automated dip coating in one enclosed line, so lenses move from load to finished coated output without manual handling between stages. Load and unload conveyors allow batches to be queued for extended unattended running. Where a higher throughput is required, we design and build larger bespoke lines on the same principles.

Integrated clean and coat

Lenses are cleaned, rinsed, dried and coated within a single controlled environment. The coating section runs inside a pressurised clean-air enclosure supplied with HEPA-filtered air, holding the particulate conditions that a hardcoat finish demands. Swappable coating tanks allow a coating changeover without draining and refilling the bath, so the line can move between coating chemistries with minimal downtime.

Control and monitoring

Recipe-based automated control governs tank levels, temperatures and sequencing. Process monitoring and data capture record each batch for traceability, and remote support access allows Unitech Shyre engineers to assist without a site visit.

Options

Applications

High-volume ophthalmic hardcoat, anti-scratch and index-matched coatings, and primer coatings for polycarbonate and pre-coated substrates.

Specification

Throughput	200+ lenses per hour
Batch size	9 pairs (18 lenses)
Process time	60 to 90 minutes per batch
Process	Integrated multi-stage ultrasonic cleaning and automated dip hardcoating in a single enclosed line
Tank configuration	17 positions: 2 etch (17 l, 200 W / 38 kHz), 1 immersion rinse, 2 cleaning (17 l, 200 W / 38 kHz), 1 immersion rinse, 2 pure water rinse (17 l, with filtration and purification), 2 drying zones (HEPA), 3 standard coating stages (10 l, swappable, each with a cooling zone), and an optional additional coating stage with cooling zone
Coating baths	3 standard, 4th optional
Enclosure	Fully enclosed clean-air, with HEPA filtration on the drying stages
Enclosure class rating	Class 100
Automation	Conveyor load and unload; high-precision servo dip mechanism
Controls	Beckhoff PLC, touchscreen HMI, recipe-based control, remote support integration
Data	Batch monitoring and capture via the Advanced Datalogging suite
Dimensions	L 6200 mm including conveyors (7200 mm including the inspection booth), D 1080 mm, H 2000 mm
Electrical supply	400 V 3+N+E, 50/60 Hz, 50 A; less than 9 kW running, less than 2 kW sleep
Water	15 mm at 2 bar minimum; a second supply if hot water is used
Compressed air	8 mm at 4 bar
Effluent and extraction	32 mm gravity drain (pump-away optional); 100 mm fume duct
Options	Extra coating tank; speed profiling; advanced datalogging, QC and monitoring suite; advanced maintenance and supervision; integrated inspection booth; UV curing station; batch data logging and reporting
