Self-contained ultrasonic strip bath with spray and immersion rinse, for lens stripping and tool cleaning ahead of recoating and reuse.

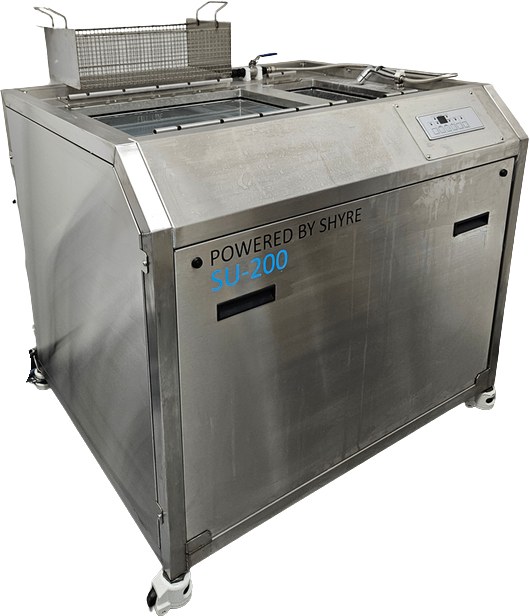

The SU200 is a self-contained strip and rinse unit for reclaiming coated lenses and cleaning production tooling. A heated 30 litre ultrasonic strip bath is followed by spray and immersion rinsing, so parts leave the unit clean and residue-free. Built entirely in stainless steel, it accepts HC-series lens carriers or alternative bars, and a lid covers the tanks when the unit is not in use.
Coatings are stripped in the heated ultrasonic bath, where a 450 W sweep-frequency system works the stripping chemistry evenly across the load. Parts then transfer to the rinse tank for spray and immersion rinsing. A gutter overflow surrounds the tanks, built-in level protection and a fill function manage the water, and digital controls set temperature and time.
The SU200 runs from a standard 230 V supply and weighs under 100 kg empty, so it installs without site works and moves with the process. Digital controls keep operation to setting temperature and time, and the covered tanks keep the chemistry clean between runs. It is commonly installed alongside HC-series coating systems as the stripping and reclaim station.
Lens stripping and reclaim in ophthalmic production, and tool and carrier cleaning across the precision cleaning and coating ranges.
| Process | Heated ultrasonic strip bath followed by spray and immersion rinse |
|---|---|
| Strip tank | 550 x 430 x 200 mm internal; 30 litres |
| Ultrasonics | 450 W, 33 kHz sweep frequency |
| Heating | 2000 W |
| Construction | Fully stainless steel; lid covers the tanks when not in use |
| Carriers | HC-series lens carriers or alternative bars |
| Water management | Gutter overflow surrounding the tanks; built-in level protection; fill function |
| Controls | Digital temperature and time control |
| Electrical supply | 230 V, 13 A |
| Mass | Under 100 kg empty |
| Options | Extraction kit; carrier bars to suit your parts |
Tell us your carriers, coatings and throughput, and we will confirm the right SU200 configuration.
