Automatic dip hardcoating for ophthalmic lens production, cleaning and coating up to 60 lenses per hour within a single clean-air enclosure.

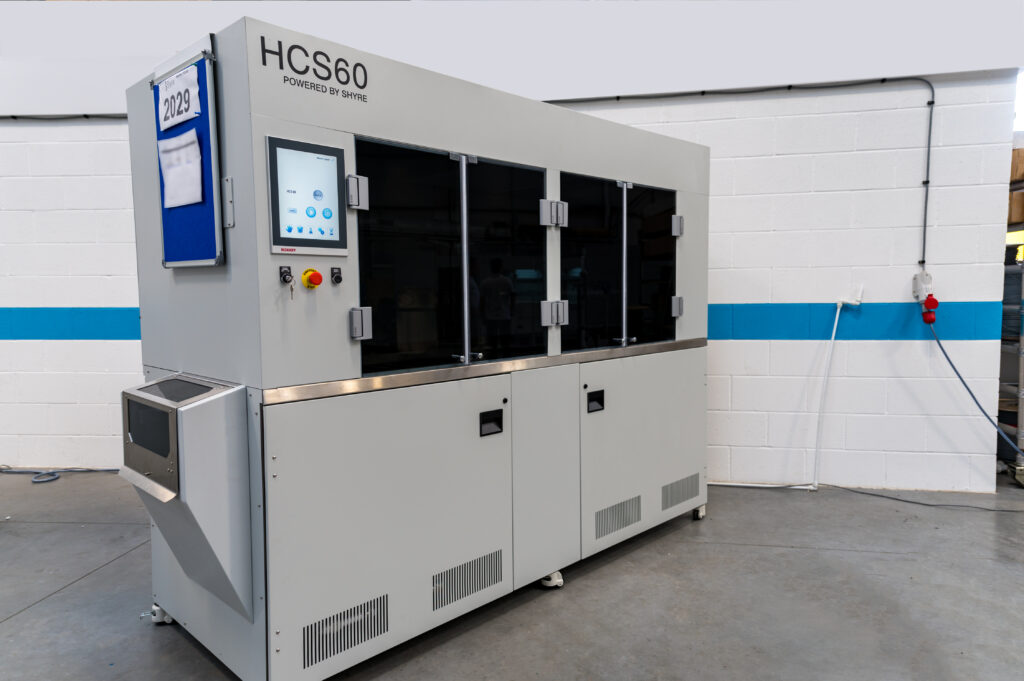

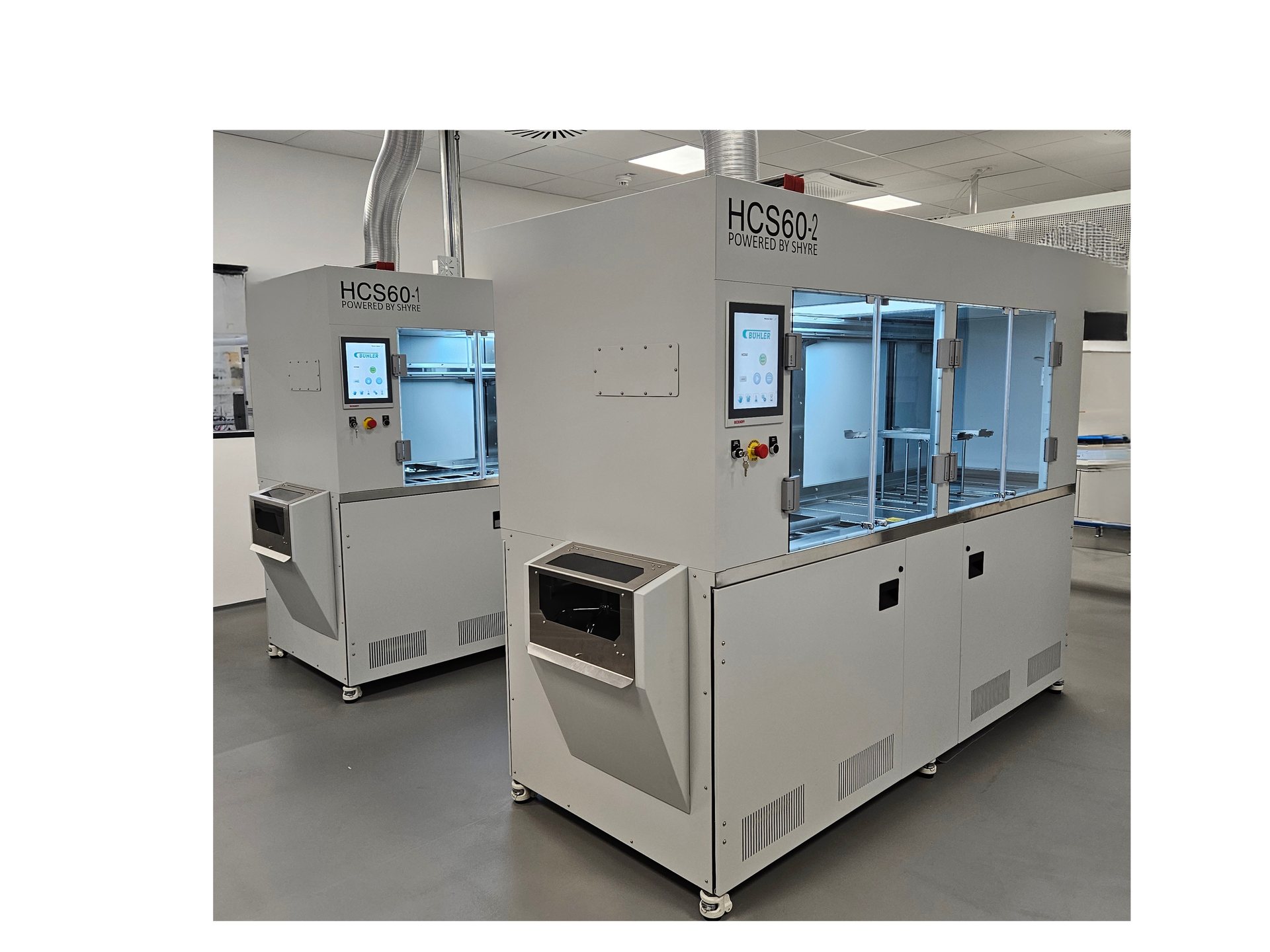

The HC60 is a fully automatic dip hardcoating system for mid-volume ophthalmic production. It integrates multi-stage ultrasonic cleaning and automated dip coating within a single clean-air enclosure, so lenses move from load to finished coated output without manual handling between stages. Load and unload conveyors allow up to six batches to be queued for extended unattended running.

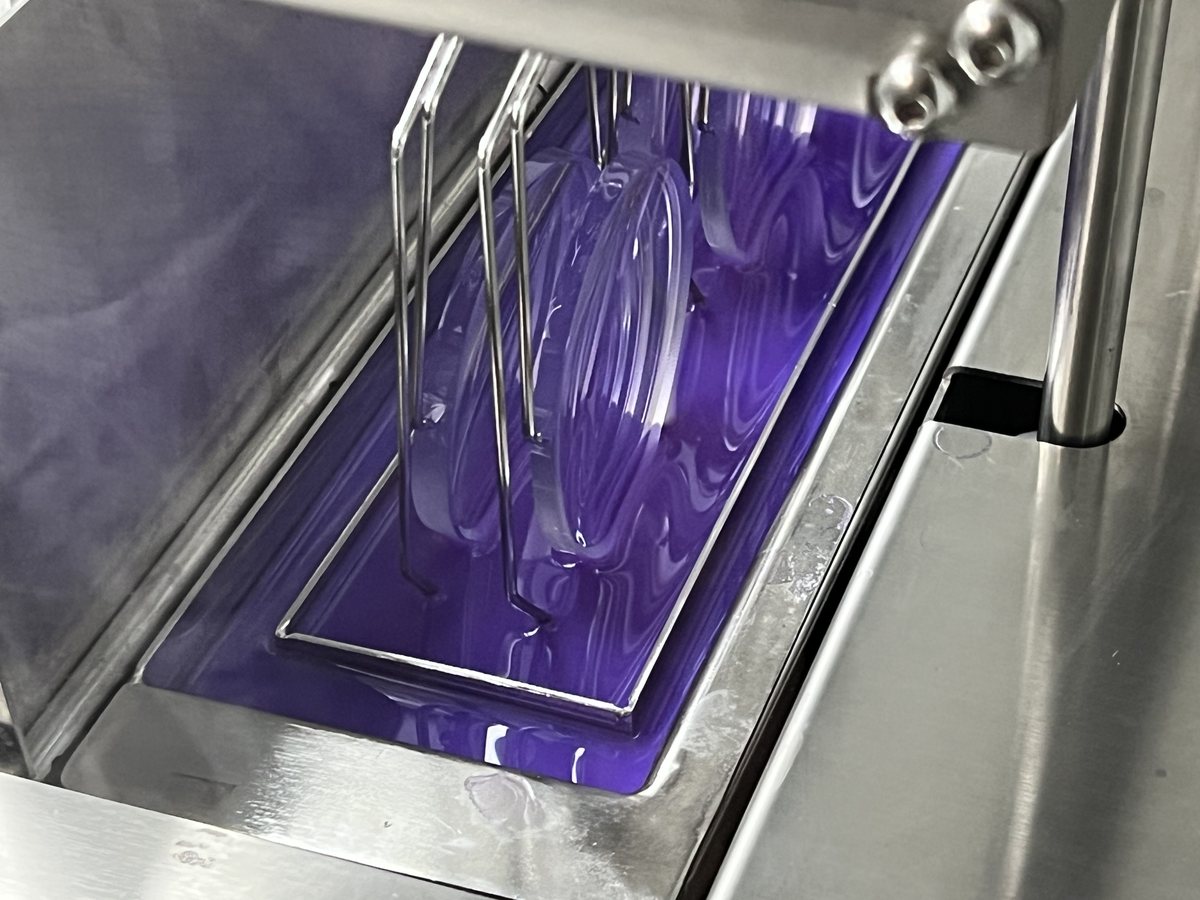

Lenses are cleaned, rinsed, dried and coated within a single controlled environment. The coating section runs inside a pressurised clean-air enclosure supplied with HEPA-filtered air, holding the particulate conditions that a hardcoat finish demands. Drying uses an infrared drier sized for the process.
Recipe-based automated control governs tank levels, temperatures and sequencing. Process monitoring and data capture record each batch for traceability, and always-on remote support access allows Unitech Shyre engineers to assist without a site visit.
Ophthalmic hard anti-scratch coating, index-matched coatings, and primer coatings for polycarbonate and pre-coated substrates.
| Throughput | Up to 60 lenses per hour |
|---|---|
| Batch size | 3 pairs (6 lenses) |
| Process time | 60 minutes per batch |
| Process | Integrated multi-stage ultrasonic cleaning and automated dip hardcoating in a single enclosed line |
| Tank configuration | 11 stations: 2 etch (7 l, 100 W / 38 kHz), 1 immersion rinse, 1 cleaning (3.5 l, 50 W / 38 kHz), 1 immersion rinse, 2 pure water rinse (7 l, with filtration and purification), 2 cooling zones (ambient), 5 infrared drying positions, 3 coating stages (3.5 l, each with a cooling zone), and an optional additional coating stage |
| Coating baths | 3 standard, 4th optional |
| Enclosure | Fully enclosed clean-air, with HEPA filtration |
| Enclosure class rating | Class 100 |
| Drying | Infrared drier |
| Automation | Two-axis servo pick and place transporter with free sequencing |
| Conveyors | Load and unload; up to six batches queued; approximately 30 minutes unattended running |
| Controls | Beckhoff PLC, touchscreen HMI, recipe-based control, always-on remote support |
| Dimensions | L 2800 mm including conveyors x D 1000 mm x H 2000 mm |
| Electrical | 400 V 3ph+N+E, 50/60 Hz, 20 A; less than 6 kW running, less than 1 kW sleep |
| Water | 15 mm at 2 bar minimum; less than 60 l/h |
| Compressed air | Not required |
| Effluent and extraction | 32 mm gravity drain (pump-away optional); 100 mm fume duct |
Tell us your throughput target, lens substrate and coating chemistry, and we will recommend the right HC60 configuration for your line.
